L1/L5 GNSS TIME HAT

L1/L5 GNSS TIME HAT for Raspberry Pi

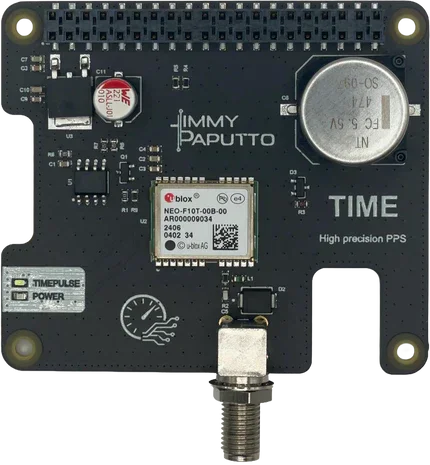

A professional-grade GNSS HAT based on the u-blox NEO-F10T chip. This board delivers reliable, standard-precision positioning and high precision time/PPS for your system.

Key Features:

• PPS accuracy: 10ns, 5ns when jitter removed (depends on skyview)
• GNSS: Reception of GPS + QZSS, Galileo, GLONASS, BeiDou, jamming and spoofing detection, position accuracy: 2m CEP

• UART Communication: Fast, low-latency integration with Raspberry Pi for real-time GNSS data
• Timepulse pin connected to GPIO: can be used as interrupt source for your app or as PPS essential for network time servers, SDR, or sensor fusion.
• Hot Start: Onboard supercapacitor allows hot-start procedure (2 seconds to acquire fix) up to 4h after power loss
• External Antenna: SMA connector, 3,3 V
• Open-Source Software: GitHub repo with user-friendly library with many examples, link: https://github.com/jimmypaputto/GnssHat

Applications:

• Time servers
• Sensor fusion with PPS

• Environmental & location-based data logging


Package Includes:

• 1x GNSS HAT for Raspberry Pi (NEO-F10T based)
• Mounting distances and screws
• GPIO header for RPi
